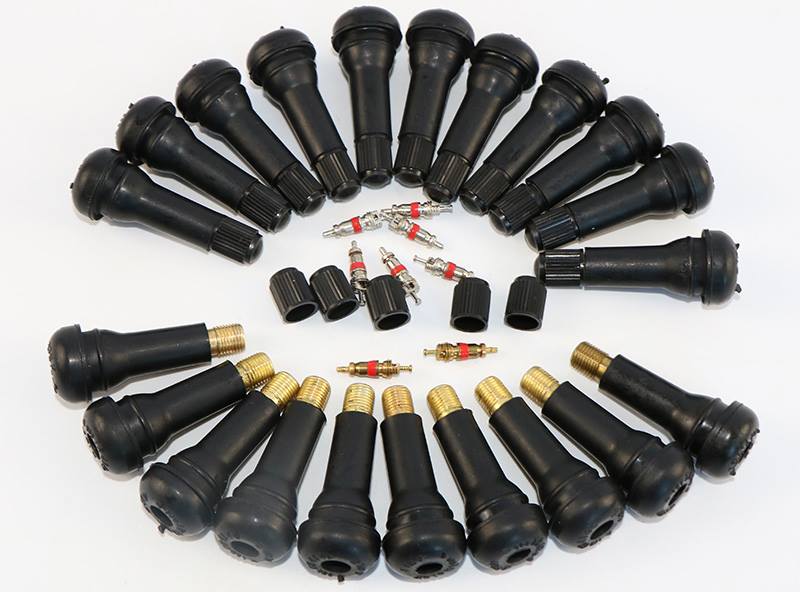

Introduction of Snap-in tubeless rubber tire valves

Introduction of Snap-in tubeless rubber tire valves

The function of tire valves is to inflate and deflate the tire.

It can help maintain the seal of tire after it's inflated.

It usually consists of core and cap.

Installation method

1.Remove valve core, deflation

2.Separate tire toe port and Unloaded from its rims

3.Remove tire valves

4.Clean the hole on the rim, remove rust and dirt

5. Install the new valve on the inner part of rims
6. Install tire correctly and inflate it up to the rated pressure
7. Screw on the new cap

	A（mm)	B(mm)	Rim hole	Packing	Pack（cm)
TR413	42.5	32	11.5	1000pcs/box	35*32*13.5
TR414	48.5	38	11.5	1000pcs/box	35*32*13.5
TR418	61.5	51	11.5	1000pcs/box	35*32*13.5
TR423	74	63.5	11.5	1000pcs/box	35*32*13.5
TR415	42.5	32	16	1000pcs/box	35*32*13.5
TR425	61.5	51	16	1000pcs/box	35*32*13.5
TR438	40.5	31	32	1000pcs/box	35*32*13.5
